English Specs |
|---|
|
Komatsu Part No.: 3FD‑04‑31111 |
|

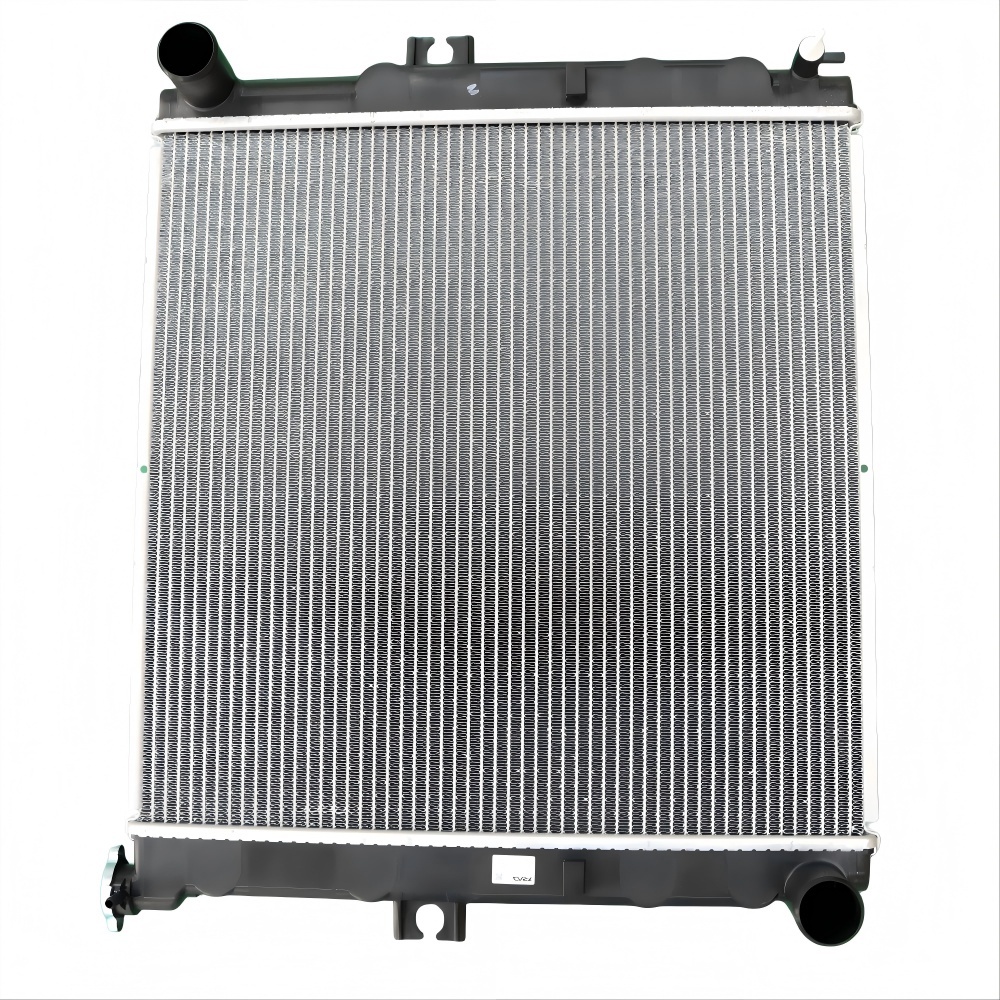

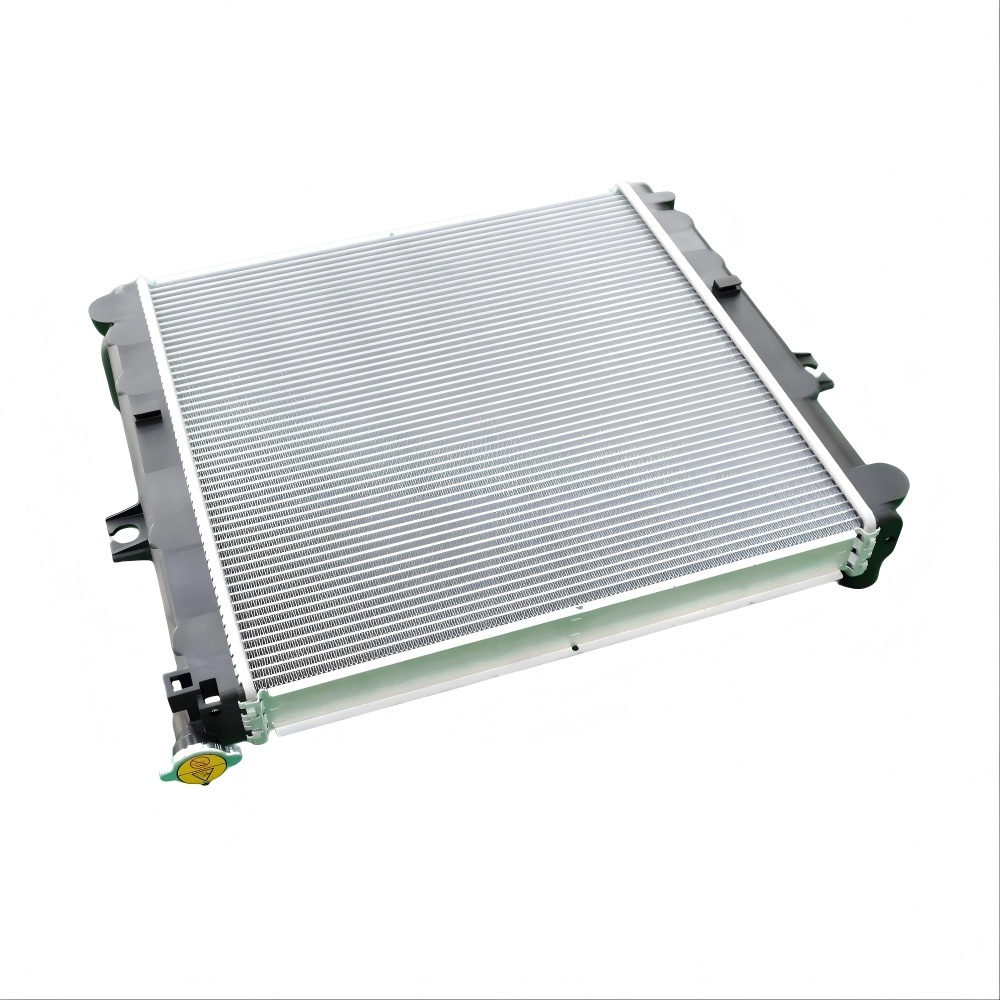

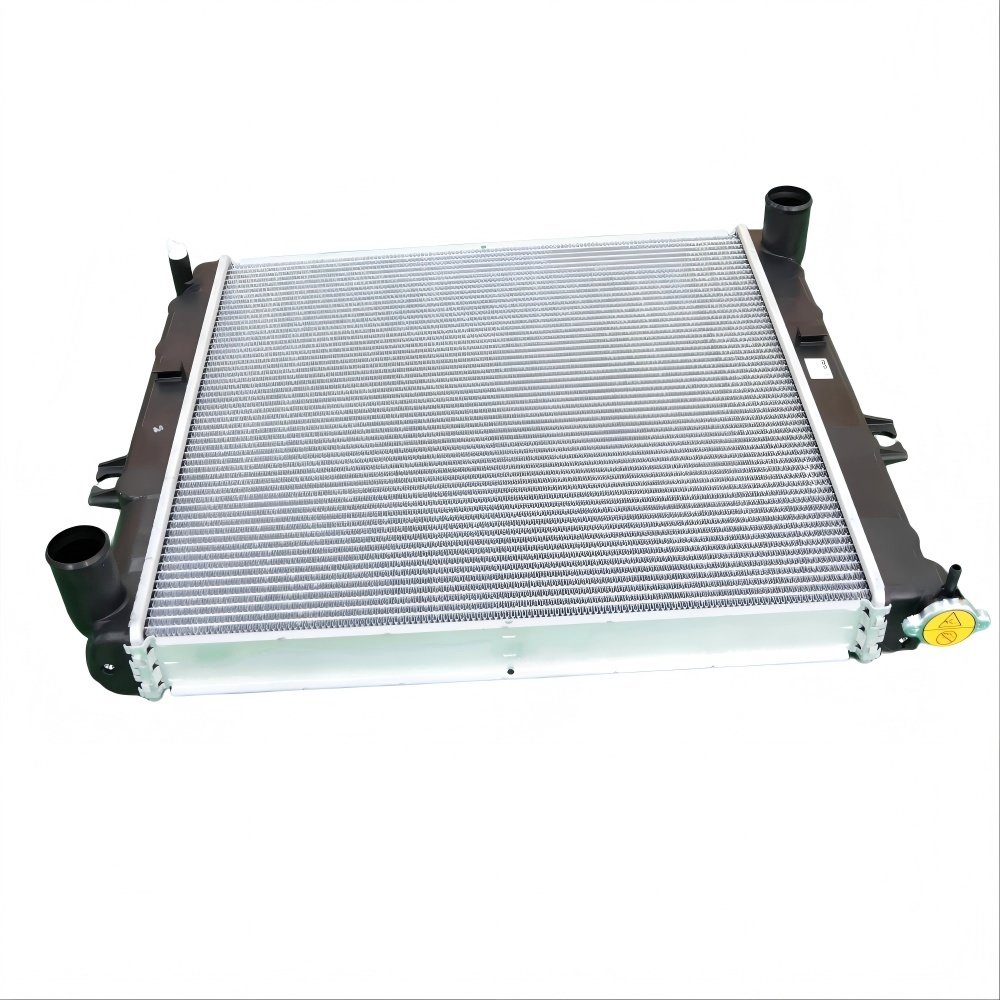

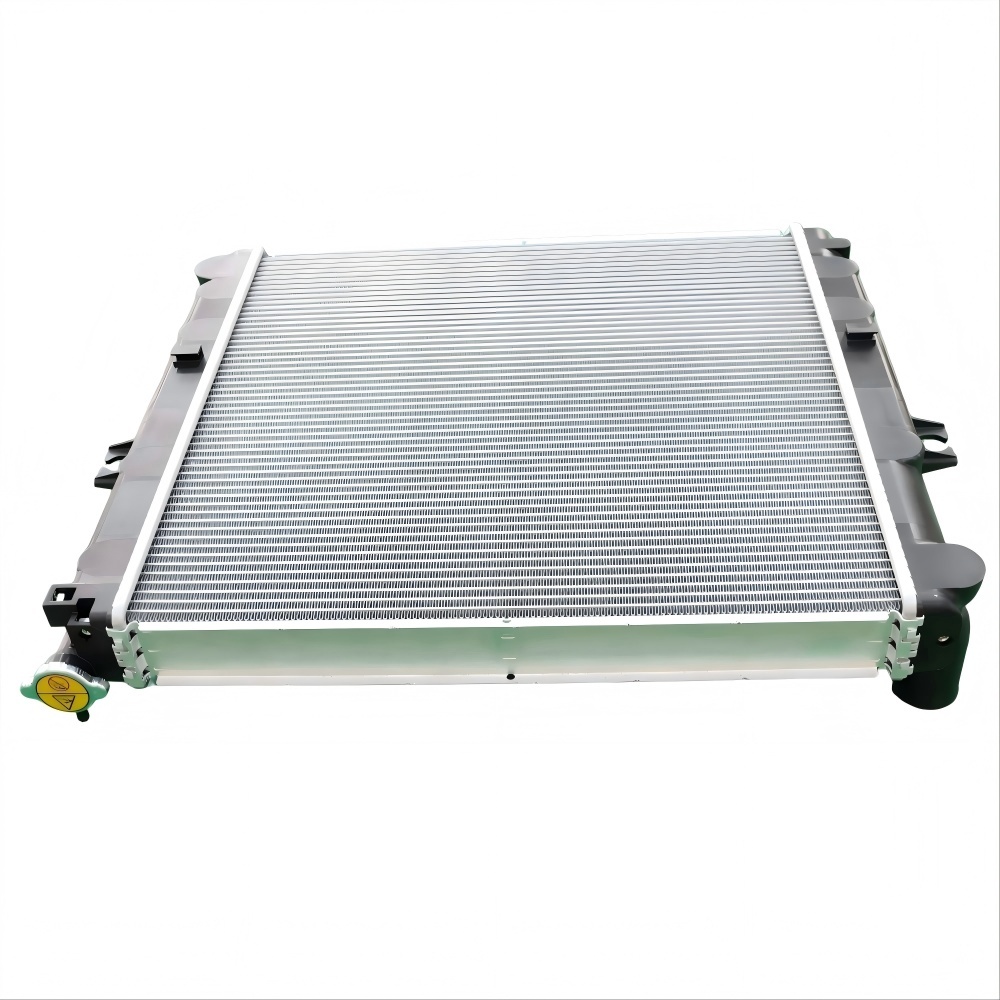

Full Name: Forklift Engine Cooling Radiator Assembly |
|
Matching Model: Komatsu FD70‑10 7‑ton heavy duty diesel forklift |
|
Matching Engine: Komatsu 6‑cylinder industrial diesel engine |
|
Cross Reference: No interchangeable part, exclusive for FD70‑10 |
|
Core Material: Full aluminum vacuum brazed core (tube & fin) |
|
Tank Material: High‑temperature resistant reinforced plastic water tank |
|
Core Structure: Multi‑layer serpentine fin tube, 2‑row cooling tube layout |
|
Fin Density: 10 FPI (10 fins per inch) |
|
Working Medium: Ethylene glycol antifreeze coolant |
|
Operating Temp Range: ‑40℃ ~ +110℃ |
|
Max Working Pressure: 1.2 Bar |
|
Net Weight: 4.6 KG |
|
Mounting Standard: 4 fixed mounting lugs, 1:1 OEM hole position |
|
Pipe Interface: Upper water inlet left, lower water outlet right |
|
Extra Function: No built‑in hydraulic oil cooler |
|
Rated Forklift Load: 7 Ton rated lifting capacity |
|
Typical Operation: Full cargo stacking, long‑hour outdoor high‑temperature work |
|
Core Function: Dissipate engine combustion heat, stabilize coolant temperature, prevent engine overheating & boiling under full load |
|
Recommended Maintenance Cycle: Clean fin dust every 200 working hours |
|
Coolant Replacement Cycle: Replace antifreeze every 2000 working hours |
